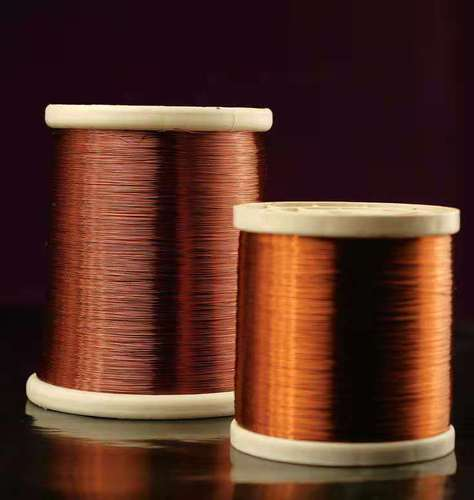

Enameled wire insulating varnish

Enameled wire insulating varnish is an insulating material used to coat wire conductors, usually consisting of a polymer resin and a solvent.

Uses: Enameled wire enamel is mainly used in the manufacture of wires and cables as an insulating and protective layer for the conductors. It stops current leakage from the conductor, provides electrical insulation and protects the conductor from the external environment.

Insulating Materials: Enameled wire insulating varnishes are usually composed of organic polymer resins, such as polyamidone, polyacetate, and polyurethane. These polymer resins have good electrical insulation properties and high temperature resistance. 3.

Solvents: Solvents in enameled wire insulating varnishes are used to dilute the resin so that it has the proper viscosity and fluidity for coating onto the conductor. Common solvents include alcohols, ketones and esters.

Characteristics and performance:

• Electrical insulation performance: enameled wire insulating varnish has good electrical insulation performance, which can effectively prevent current leakage from the conductor and provide electrical isolation.
• High temperature performance: some enameled wire insulating varnish has good high temperature performance, can maintain stable insulation performance in high temperature environment. For example, Polyimide insulating varnish can withstand high temperatures up to 200°C or more.
• Chemical resistance: enameled wire insulating varnish has certain chemical resistance, can resist the corrosion and erosion of some chemical substances, to protect the conductor from damage.
• Adhesion properties: enameled wire insulation paint should have good adhesion properties, can be tightly attached to the conductor surface, to prevent the paint film from peeling or falling off.
• Flexibility: some enameled wire insulating varnish has good flexibility, can adapt to the bending and twisting of the conductor, not easy to crack or break.

Application: Enameled wire enamels can be applied to the wire surface by dipping, spraying or drop coating. Usually multiple layers are required, with drying and curing between each layer.

Standards and specifications: The production and use of wire enamels usually requires compliance with relevant international or industry standards and specifications to ensure product quality and performance.

It should be noted that the details and performance characteristics of specific wire enamels may vary from product to product and manufacturer to manufacturer. When selecting and using enameled wire insulating varnishes, the product specification should be read carefully and the manufacturer’s recommendations and guidelines should be followed.
