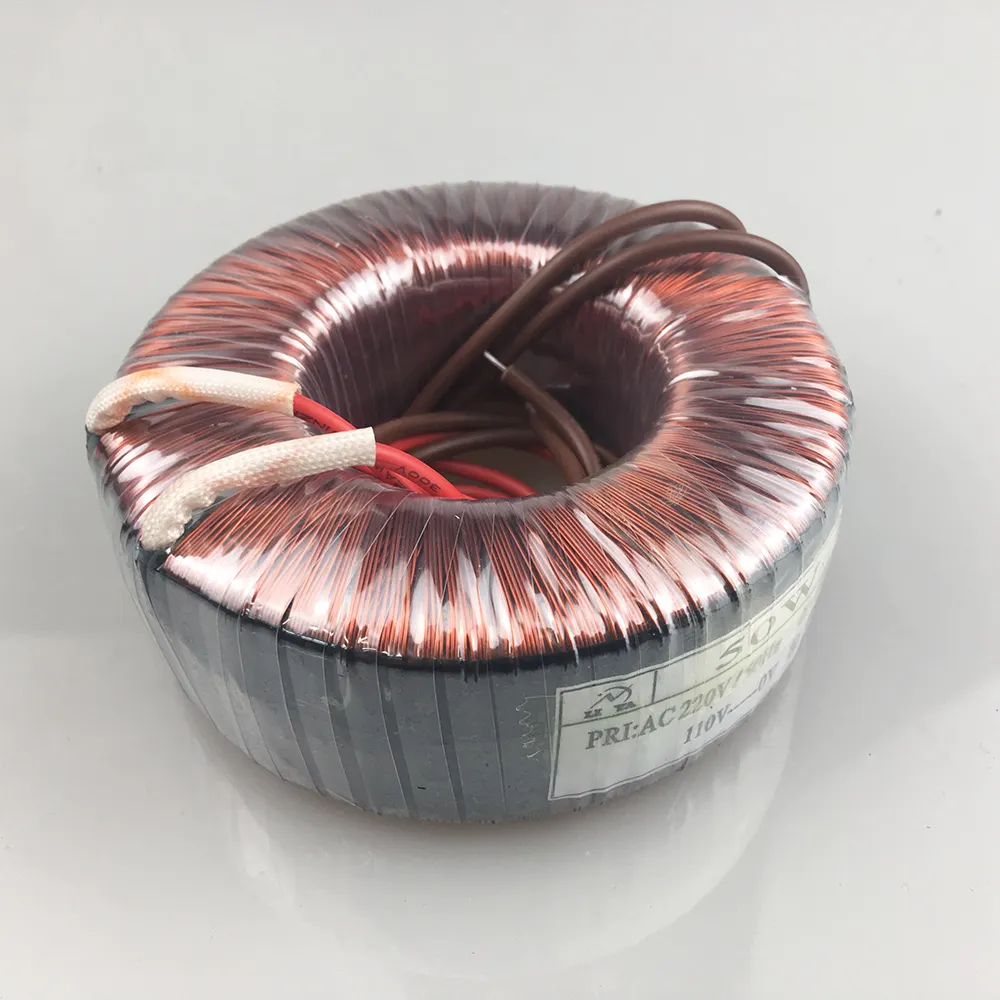

12V Toroidal Transformer

Toroidal transformer is a special type of transformer which has a toroidal core structure. Here are the details about 12V toroidal transformer:

1. Working Principle: A toroidal transformer transfers electrical energy from one circuit to another by the principle of electromagnetic induction, while changing the magnitude of voltage. It consists of two or more windings (coils) which share a magnetic core. When the current in the input winding changes, the resulting magnetic field is transferred through the core to the output winding, resulting in a change in the output voltage.

1. Input and Output: The input voltage of a 12V toroidal transformer is 12 volts (DC or AC), which is used as the input supply voltage. The output voltage, on the other hand, depends on the design of the transformer and can be either lower or higher, depending on the needs of the application.
2. Core material: The core of a toroidal transformer is usually made of soft magnetic materials such as ferrite, ferrite alloy or amorphous alloy. These materials have good permeability and low hysteresis loss, which helps to improve the efficiency and performance of the transformer.
3. Windings and insulation: The windings of a toroidal transformer are wound from wires (usually copper), and the input and output windings are connected to the input and output circuits respectively. Good insulation is required between the windings to avoid short-circuiting and leakage of current.
4. Application: 12V toroidal transformers are widely used in low voltage electronic devices and circuits, such as power adapters, low-voltage lighting systems, wireless communication equipment, audio equipment, etc.. They can convert the input voltage to the required lower voltage suitable for the particular equipment or circuit.
5. Safety and protection measures: When using a toroidal transformer, it is necessary to pay attention to the safety limits of voltage and current, and to take appropriate protection measures, such as overload protection, short-circuit protection, and over-temperature protection, etc., in order to ensure the safety of equipment and personnel.

Specific 12V toroidal transformer designs and specifications may vary by manufacturer and application. When selecting and using a toroidal transformer, it is recommended to refer to the relevant technical specifications, manufacturer’s instructions or consult a professional engineer to ensure that it meets the requirements of the specific application.
