How to choose the right type of wire and insulation material

The following factors need to be considered in selecting the right type of conductor and insulation:

1. Current Load: Select the appropriate type of conductor based on the amount of current the conductor will carry. High current loads usually require the selection of a material with good electrical conductivity, such as copper conductors.
2. voltage level: according to the conductor in the voltage level to choose the right insulation material. Higher voltage levels require the selection of materials with high dielectric strength to ensure electrical insulation performance.
3. Environmental conditions: Consider the environmental conditions in which the conductor is located, such as temperature, humidity, chemical substances. Select insulating materials with high temperature resistance, waterproof, chemical corrosion resistance and other characteristics.
4. space constraints: according to the wire installation space constraints to select the appropriate type of wire and insulation materials. Sometimes it is necessary to choose soft, easy to bend the wire to adapt to the narrow space. 5.
5. Cost Considerations: Consider the cost of the wire type and insulation material. The cost of different materials will vary and will need to be considered in the context of budget and performance requirements.

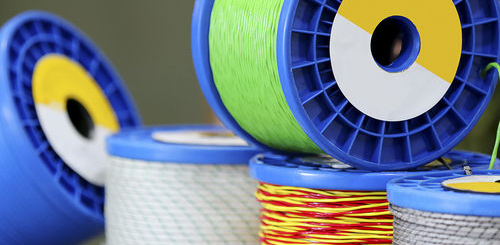

The following are common wire types and insulation materials:

1. conductor type:

• Copper conductors: have good electrical conductivity and corrosion resistance, commonly used in high current load applications.
• Aluminum Conductors: Lower cost compared to copper conductors, commonly used for lower current load applications.
• Copper clad aluminum conductor: combines the advantages of copper and aluminum conductors, with good electrical conductivity and low cost.

1. Insulation material:

• PVC (Polyvinyl Chloride): one of the commonly used insulating materials with good insulation properties and chemical resistance for general low voltage applications.
• XLPE (cross-linked polyethylene): with high heat and voltage resistance, suitable for medium and high voltage applications.
• EPR (Ethylene Propylene Rubber): good heat resistance and chemical resistance, suitable for high temperature environments and applications with high chemical corrosion.
• Paper impregnated insulation: used in some special applications with high temperature resistance, such as transformer windings.

When selecting wire types and insulation materials, it is recommended to refer to the relevant electrical standards and codes and to consult an electrical engineer or supplier to ensure that the materials selected meet the required electrical requirements and safety features.
