Paper Insulated Copper Conductors

Paper insulated copper conductor is a traditional wire and cable product, which is characterized by copper conductor covered by paper insulation. The following are the details about paper insulated copper conductor:

1. Conductor: paper insulated copper conductor uses copper as the conductive material, usually using multiple strands of fine wire or solid wire composition. Copper conductor has excellent conductive properties and mechanical strength, and is widely used in various electrical systems.
2. paper insulation: paper insulation is a special insulation material, mainly made of natural fiber materials (such as wood pulp). Paper insulation has good insulating properties and mechanical strength, can effectively isolate the current, prevent circuit short circuit and leakage. Paper insulated copper conductor of copper conductor surface is paper insulation coating, play a role in insulation and protection.
3. outer jacket: in order to further protect the paper insulated copper conductor, usually in the outer layer of paper insulation added outer jacket layer. The outer jacket can be made of a variety of materials such as polyvinyl chloride (PVC), polyethylene (PE) or PVC-Nylon composite materials. The outer jacket provides additional mechanical protection and corrosion resistance to enhance the durability of the wire. 4.

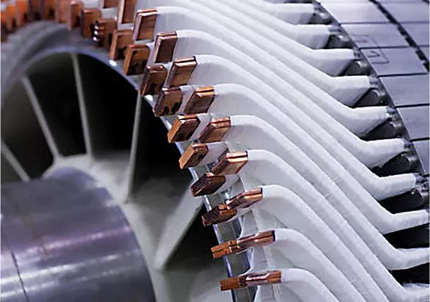

4. Areas of application: Paper-insulated copper conductors are commonly used in low-voltage power systems and electrical equipment, such as home power distribution, lighting circuits, and motor coils. Due to the characteristics of paper insulation, they are also used in some special applications, such as transformer windings, generator windings, etc.
5. Advantages and limitations: Advantages of paper insulated copper conductors include relatively low cost, traditional reliability, ease of processing and installation. Paper insulation has good insulating properties and is capable of meeting the requirements of low voltage electrical systems. However, compared to modern insulation materials, paper insulation has poor insulation properties and limited ability to withstand humid environments and high temperatures. In addition, paper insulation is sensitive to external factors such as light, mold and insects.

When choosing to use paper-insulated copper conductors, other insulation materials or technologies may need to be considered for special environments and demanding applications. In addition, in the use and maintenance process, attention needs to be paid to the protection, maintenance and testing of paper insulation to ensure its normal operation and safety performance.
