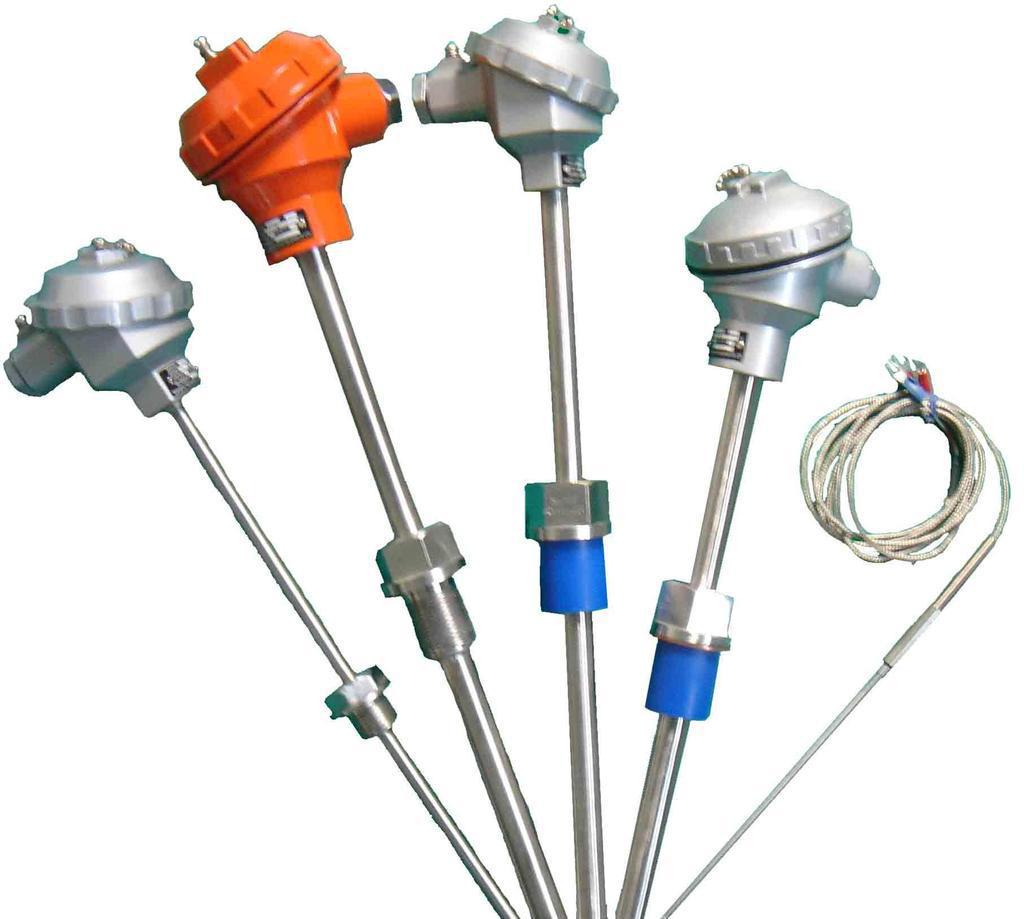

Thermocouple

A thermocouple is a temperature measuring sensor that utilizes the thermoelectric effect between two different metal wires to measure temperature changes. It is one of the common temperature sensors widely used in industry and science.

Working Principle: Thermocouple is based on the thermoelectric effect of a thermoelectric pair consisting of two different metal wires. According to the principle of thermoelectric effect, when a temperature gradient is formed at the point of connection of two different metal wires, a potential difference (thermoelectric potential) is generated. This potential difference varies with temperature and there is a relationship between it and the temperature change. By measuring the thermoelectric potential, the change in temperature can be inferred.

Thermopair: A thermocouple consists of a thermoelectric pair of two different metal wires. There are various common types of thermocouples, such as type K (Nichrome – Nickel Aluminum), type J (Iron – Copper Nickel), type T (Copper – Copper Nickel) and so on. Different types of thermocouples have different temperature ranges and characteristics for different application scenarios.

Temperature Measurement Range: Thermocouples can measure temperatures in both very high and low temperature ranges. Different types of thermocouples have different operating temperature ranges, ranging from tens of degrees Celsius to thousands of degrees Celsius. For example, type K thermocouples are suitable for the range of -200 degrees Celsius to +1350 degrees Celsius.

Features and Benefits:

• Wide operating temperature range: thermocouples can work stably in extreme high and low temperature environments.
• High Temperature Measurement Accuracy: Thermocouples can provide relatively high temperature measurement accuracy.
• Fast Response Time: Thermocouples have a fast response time and can react quickly to temperature changes.
• Corrosion resistance: thermocouples have good corrosion resistance against most chemicals and corrosive gases.

Applications: Thermocouples are widely used in industrial process control, combustion control, heat treatment, aerospace, chemical, energy and other fields. For example, in industrial production, thermocouples can be used to monitor and control the temperature in the heating process to ensure process stability and product quality.

The accuracy and measurement precision of thermocouples is affected by a variety of factors, such as the purity of the wire material, temperature compensation of the connectors, and circuit compensation. When using thermocouples, it is necessary to select the right type of thermocouple according to specific requirements and carry out appropriate temperature compensation and calibration to ensure the accuracy and reliability of the measurement results.
